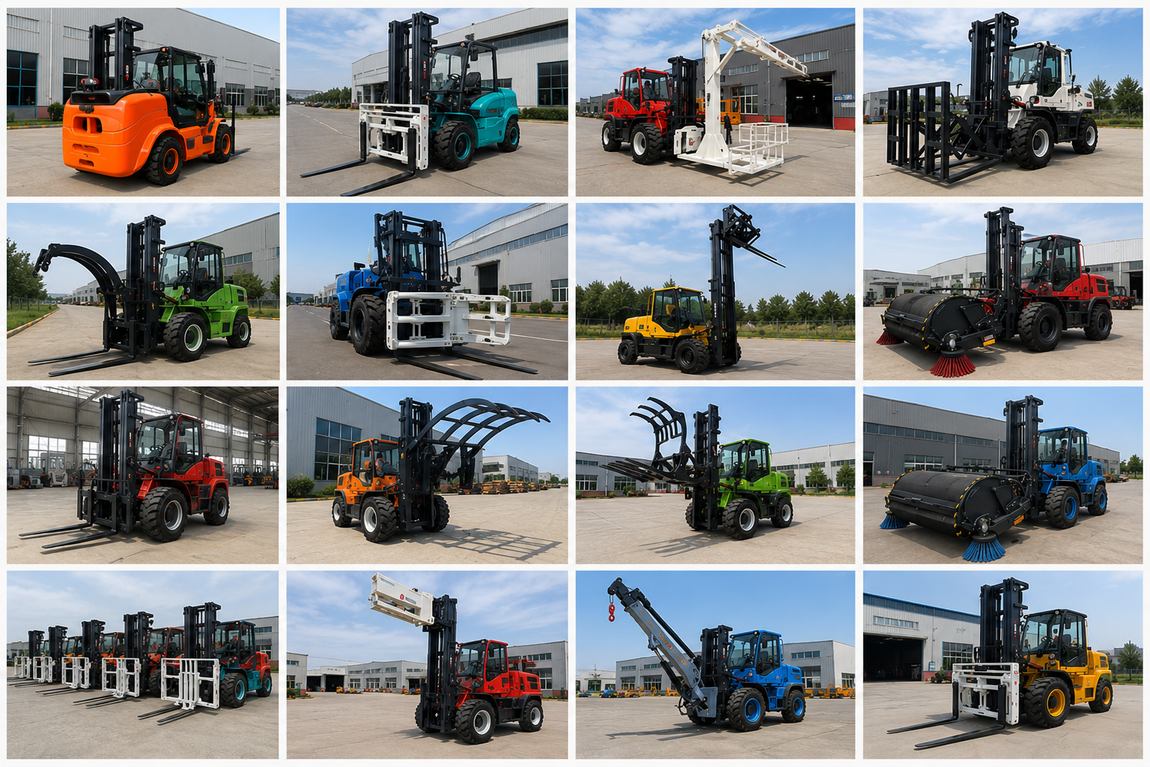

The LT-R3500N rough terrain forklift is designed for reliable material handling on construction sites, farms, mines, forestry worksites, and other demanding off-road environments.
Reliable mini excavators, rough terrain forklifts, crawler dumpers, and wheel loaders for global markets.
Rough Terrain Forklifts are specifically designed for construction sites, farms, mines, forestry operations, and other demanding off-road environments. Equipped with a powerful engine, high ground clearance, heavy-duty all-terrain tires, and a robust chassis, they deliver outstanding climbing ability, load capacity, and operational stability. Built to handle mud, gravel, sand, grass, and uneven terrain with ease, these forklifts ensure safe, efficient, and reliable material handling in the most challenging outdoor working conditions, making them the ideal solution for heavy-duty off-road applications.
Product Parameters
| Product Model | LUTOS-R3500N(Short) | LUTOS-R3500N |
| Rated lifting weight | 3500kg | 3500kg |
| Rated lifting height | 3000-6000mm(optional) | 3000-6000mm(optional) |
| load center | 600mm | 600mm |
| minimum turning radius | 3200mm | 3200mm |
| Maximum climbing angle | ≤38° | ≤38° |
| Ground clearance | 300mm | 300mm |
| Front tilt/rear tilt angle of the gantry | 10.0/6.0 | 10.0/6.0 |
| Fastest running speed | 38km/h | 38km/h |
| Maximum hook traction force | 25.0KN | 25.0KN |
| Engine model | Quanchai/Yunnei 493(36.8kw) | Quanchai/Yunnei 493(36.8kw) |
| drive mode | Four-wheel drive | Four-wheel drive |
| Transmission model | 265 dual high and low speed torque converter | 265 dual high and low speed torque converter |
| tire model | 12-16.5 Special reinforced type | 20.5/70-16 engineer type |
| wheelbase | 1220mm | 1220mm |
| Door frame steel width | 160mm | 160mm |
| FORK LENGTH | 1220 mm(optional) | 1220 mm(optional) |
| Total weight | 4200 kg | 4200 kg |
| Overall dimensions | 4100*1850*2200mm | 4200*1850*2200mm |
Share your needs for tailored models, pricing, delivery, and OEM options.
