The complete set of hydraulic systems are international well-known brands, no rust, no valve jamming, etc. regardless of wind, sun, rain, etc. At the same time, the products can be customized to meet the needs of different countries and customers. It can be applied to a variety of complex environment operations, whether it is mountains, hills, terraced fields, hard ground, paddy fields, it can be easily done.
Reliable mini excavators, rough terrain forklifts, crawler dumpers, and wheel loaders for global markets.

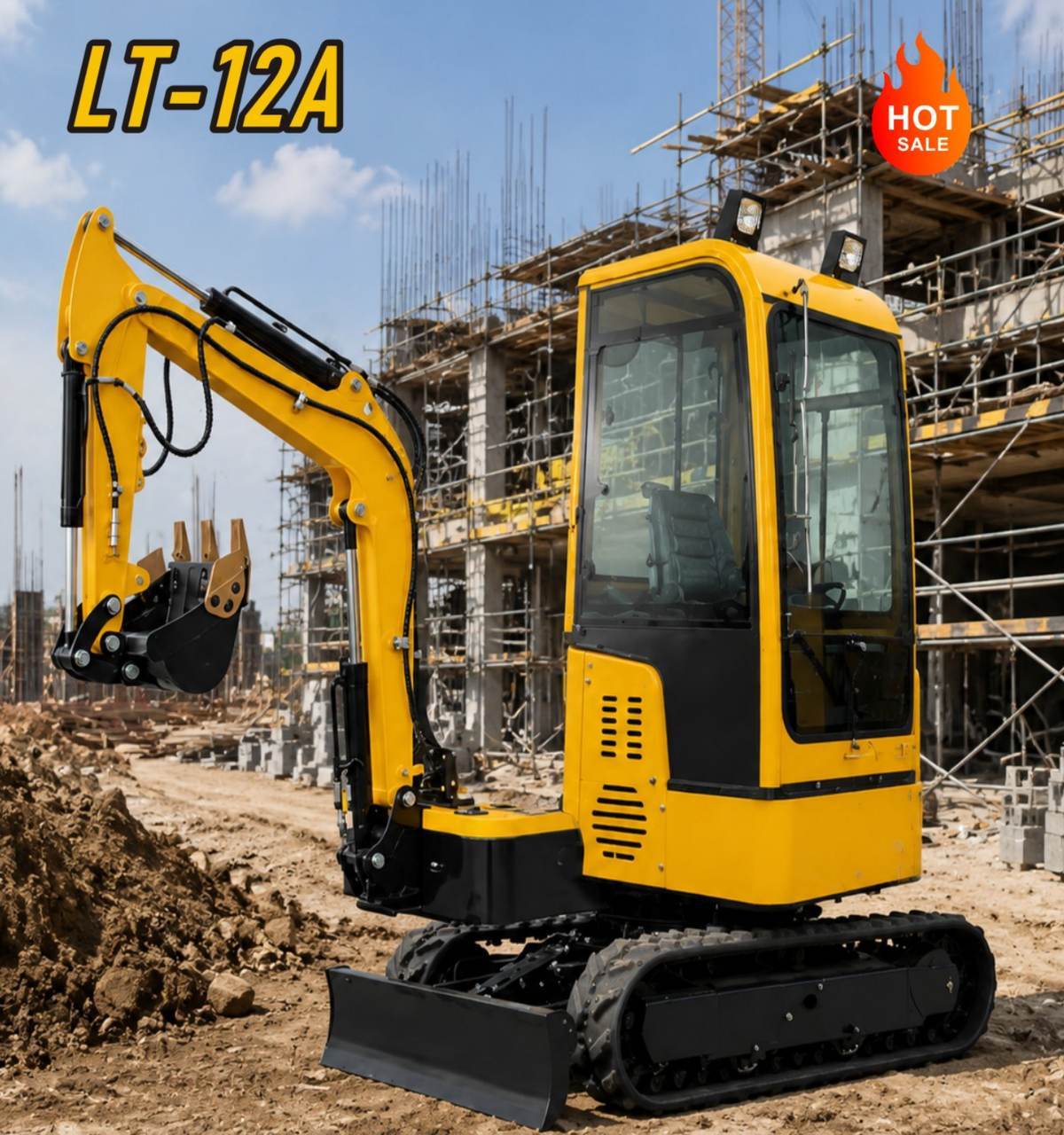

| Model | LT-12A |
| Bucket Capacity | 0.025m³ |
| Chassis Width | 930mm |
| Track Length | 1250mm |
| Gradeability | 40° |
| Chassis Ground Clearance | 385mm |
| Track Width | 180mm |
| Volume of fuel tank | 3.5L |
| Overall Dimension | 2200*930*2200mm |
| Transport Length | 2200mm |
| Excavator Height | 2200mm |
| Hydraulic flow | 40L/Min |
| Hydraulic tank capacity | 16L |
| Working pressure | 16Mpa |

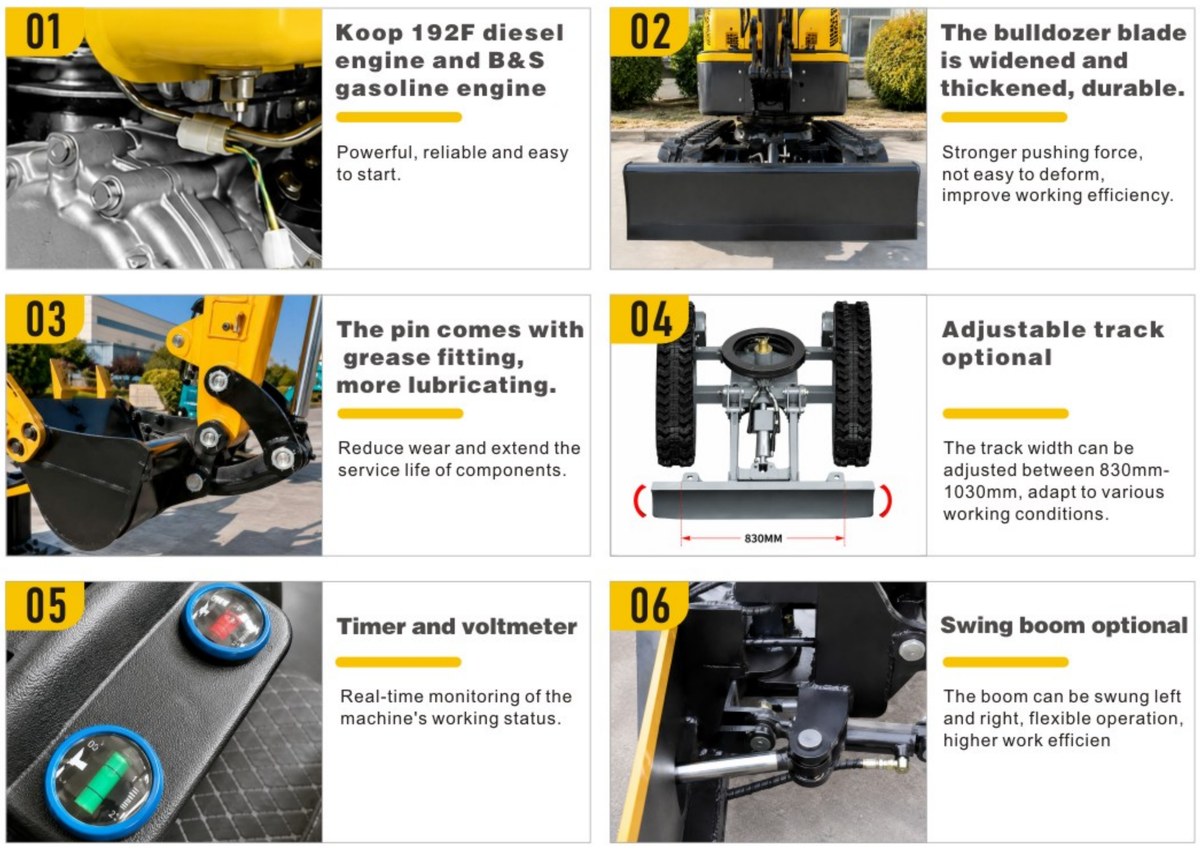

| Engine | KOOP 192F Diesel Engine |
| Engine Power | 7.0kw |
| EPA Engine Optional | Briggs&Stratton gasoline/13.5hp |
| Max.Digging Height | 2550mm |
| Max.Dumping Height | 1850mm |
| Max.Digging Depth | 1650mm |
| Max.Digging Radius | 2400mm |
| Turning Radius | 1190mm |
| Bucket excavating force | 11KN |
| Operating Weight | 1000kg |
| Configuration | Valve:BeifangBrand; Pump:Xingzou Brand; Double Gear Pump |
Share your needs for tailored models, pricing, delivery, and OEM options.
