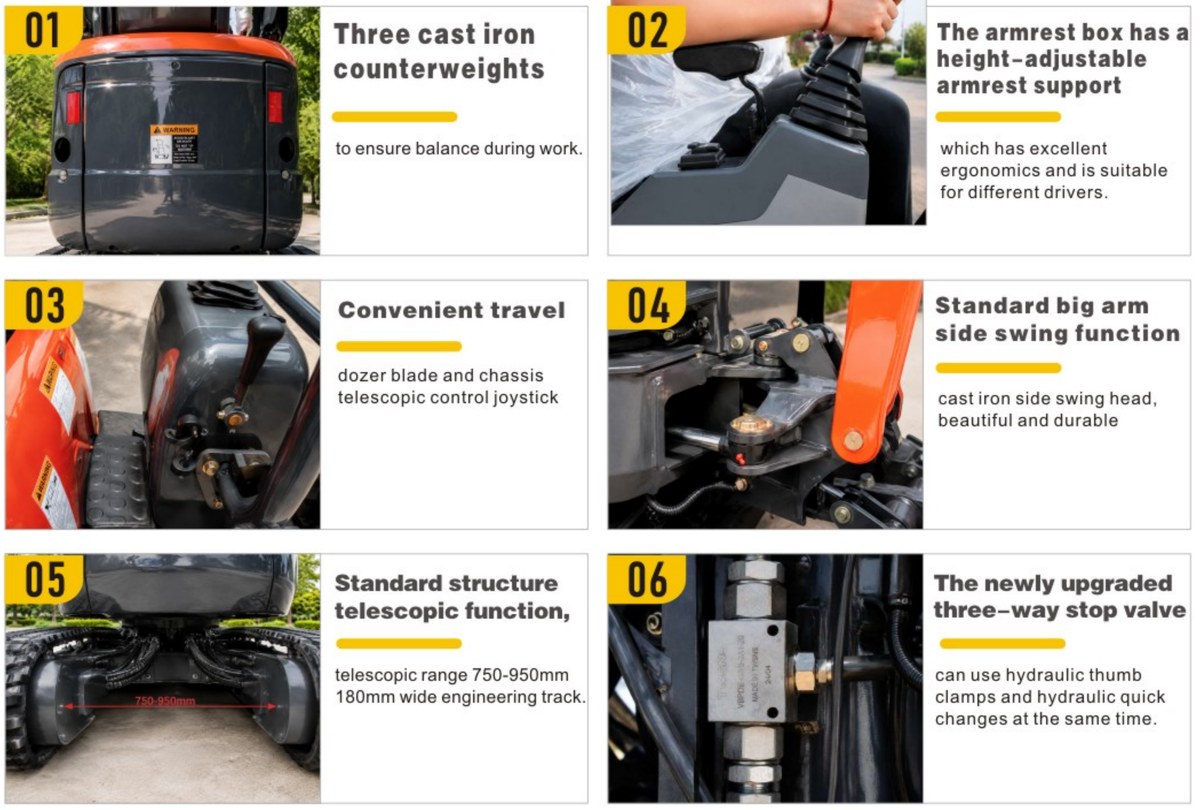

The entire vehicle adopts a molded appearance, which is durable and in line with public aesthetics. It is also convenient for maintenance and repair. It has a 2-leg anti-roll roof. The entire vehicle is made of Q355 manganese steel plate, double gear pump,load-sensitive multi-way valve, and the action is soft and efficient.
Reliable mini excavators, rough terrain forklifts, crawler dumpers, and wheel loaders for global markets.

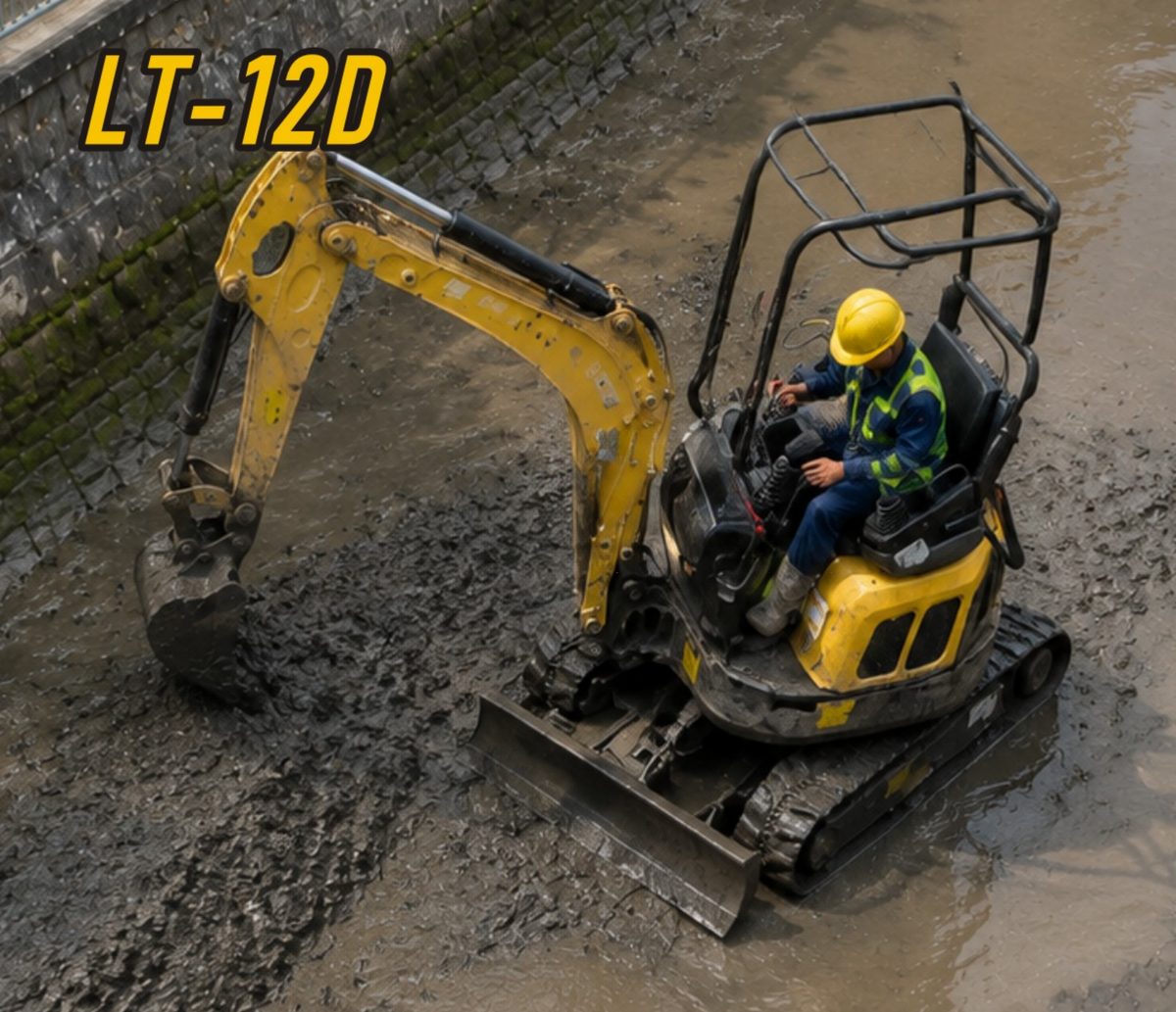

| Model | LT-12D |
| Bucket Capacity | 0.02m³ |
| Operating Weight | 1035kg |
| Engine Model | Kubota D722 |
| Fuel Tank Capacity | 15L |
| Travel Speed | 2.1-4.0km/h |
| Swing Speed | 13r/min |
| Max.Climbing Degree | 30° |
| Bucket Digging Force | 6.5KN |
| Largest Traction | 19KN |
| Overall Length | 3005mm |
| Overall Width | 750-950mm |
| Overall Height | 2160mm |
| Min.Ground Clearance | 140mm |
| Track Length | 1393mm |
| Track Width | 750-950mm |
| Turntable Width | 725mm |
| Max.Digging Height | 3060mm |
| Max.Dumping Height | 2150mm |
| Max.Digging Depth | 1550mm |
| Max.Digging Reach | 3350mm |
| Min.Swing Radius | 1445mm |
| Track Gauge | 580-780mm |
| Height Of Counterweight | 380mm |
| Deflection Angle Left/Right | 54°/59° |
| Maximum dozing height/depth | 195/140mm |
| Working pressure | 16Mpa |
Share your needs for tailored models, pricing, delivery, and OEM options.
